Showing all 9 results

  • 551 HD Radio Modulation Monitor

    Features Monitor off-air analog FM and HD Radio signals (HD1-HD8) on the Hi-Res Front Panel Touch Display and via the Web from anywhere in the world. The 3U package features a 7-inch graphic touch screen display, wide-range LED level meters with rear-panel tallies. The 551 collects the history of signal parameters and displays HD Radio™ album artwork, station logos and similar visuals on the front panel display and remote Web interface. Front-panel alarms and/or rear-panel ‘tallies’ indicate Audio Loss, Low Signal, RDS Errors, HD Loss, HD Power, FM/HD1 Alignment, HD Artist Experience, and many others. Spectrum graphs include RF Baseband, MPX and Left/Right Audio. O-Scope views for MPX, Pilot, RDS and all Audio Channels. Measures real-time audio diversity delay between the FM and HD1 broadcast. Fulltime off-air program audio is available simultaneously as L/R-analog, AES3-digital and Dante®-based AES67 AoIP streaming, all with adjustable levels, plus a multi-listener Internet IP stream and front-panel headphone jack. Specifications Tuning Range 87.5MHz-107.9MHz in 100kHz steps Antenna Input: 75-ohm (F) High Level RF Input:50-ohm (BNC) Sensitivity/SNR:10dBuV required for 50dB mono-FM SNR, unweighted. Reception Modes: FM: Stereo / Forced Mono HD Radio: HD1 through HD8 FM/HD1: ‘Split Mode’ delivers L+R FM to the left audio channel and L+R HD1 to the right. Off-Air Frequency Response: FM: ±.1dB, 20Hz-15kHz HD Radio: ±0.25dB, 20Hz-20kHz Stereo Separation: FM: 60dB, 20Hz-15kHz HD Radio: 90dB, 20Hz-20kHz Distortion: FM: <0.01% THD, 20Hz-15kHz HD Radio: <0.003% THD, 20Hz-20kHz FM De-emphasis: 75µs, 50µs or None, menu-selectable Program Audio Outputs: ‘Assignable’ outputs utilize XLR connectors, ‘Dedicated’ outputs are RJ45 jacks per StudioHub® spec. (model 551 only) Balanced Analog: Left and Right outputs adjustable from –15dBu to +15dBu in 0.1dB steps; 200Ω source. AES Digital: Adjustable from –30dBFS to 0dBFS in 0.1dB steps; 44.1kHz sample rate; 110 Ω transformer-coupled. Dante/AES67 Compatible: (RJ45) Output at 44.1kHz (Dante-only) or 44.1kHz/ 48kHz (Dante /AES67); AoIP utility has independent IP, Audio Format and Transmit Flow settings; level adjustable from –30dBFS to 0dBFS in 0.1dB steps. Headphone Jack: (¼” TRS) with adjustable listening level. Listening Stream: Web browser ‘remote listening’ stream uses HE-AACv2 encoding, 44.1kHz or 48kHz sample rate, bit-rates from 18kbps to 64kbps; accommodates up to 10 simultaneous listeners. HTTP/Icecast and raw UDP streams are available simultaneously. Composite/MPX Output: (BNC) may be switched between MPX and 19kHz stereo pilot sample; adjustable from 1Vpp to 6Vpp in 0.05V steps. LAN Port: LAN connection to local network or Internet provides remote monitoring, control, listening and full SNMP implementation; user-programmable network setup and streaming parameters. General Purpose Outputs: Ten individual open-collector NPN transistor closures to ground are associated with alarm functions. Each is programmable for GPO assignment and logic polarity. RDS Fields Displayed: PS • PI • Call • RT • RT+1 • RT+2 • PTY • PTYN • CT • M/S • DI • TP • TA • AF • ODA • Block Error Rate • Groups & use statistics. HD PAD Data Displayed: Overview: Short Name • Universal Name • Station ID • Slogan• Message • Station Location • Service Mode • TX Blend • Emergency Alert HD1-HD8, each: Slogan • Program Type • Artist • Title • Album • Codec Mode • Bitrate • TX Gain • Logo/Artist Experience graphics and file details. Bargraph & Numerical Level Metering: Analog FM: Carrier Modulation • Stereo Pilot & Subcarriers • Demodulated L/R & L+R/L-R • Stereo Separation • Stereo Crosstalk • BS.1770 Loudness • Synchronous & AM Noise. HD Radio: (simultaneously for HD1 and three other preselected HD programs) L/R Audio • BS.1770 Loudness (absolute and relative to Analog FM Loudness). FM/HD1 Alignment: Timing offset and level and phase discrepancies between programs; ‘Confidence Factor’ display. Graphic Displays/Plots: RF Spectrum • MPX Spectrum • Audio Spec­trum • Audio XY • Audio O’scope • FM Modulation History • Audio Level History • Metrics History • FM/HD1 Time & Level Alignment History • BandScanner™ utility. Alarms: Most alarms have multiple parameter settings. All alarms can send text or email notifications. Alarms are also logged: daily, weekly, monthly._ Analog FM: Carrier Overmod • Audio Loss • Low Signal • RDS Loss • PI Error • RT Update • Pilot Loss HD Radio: HD Loss • Program Loss • Audio Loss • HD Power Level • FM/HD1 Alignment • PSD Update • Logo Receipt • Artist Experience Update • Image Issues • Emergency Alert Updates Real-Time Clock: Auto-sets to Internet time; auto/manual DST setting; battery backup. Power Requirement: 88-264Vac, 18W. Operating Environment: 32°F/0°C-122°F/50°C; 0%-95% non-condensing relative humidity; 10,000ft/3048m Size and Weight: 25”H x 17”W x 3”D; 8 lbs. shipping weight.

    Read moreDone

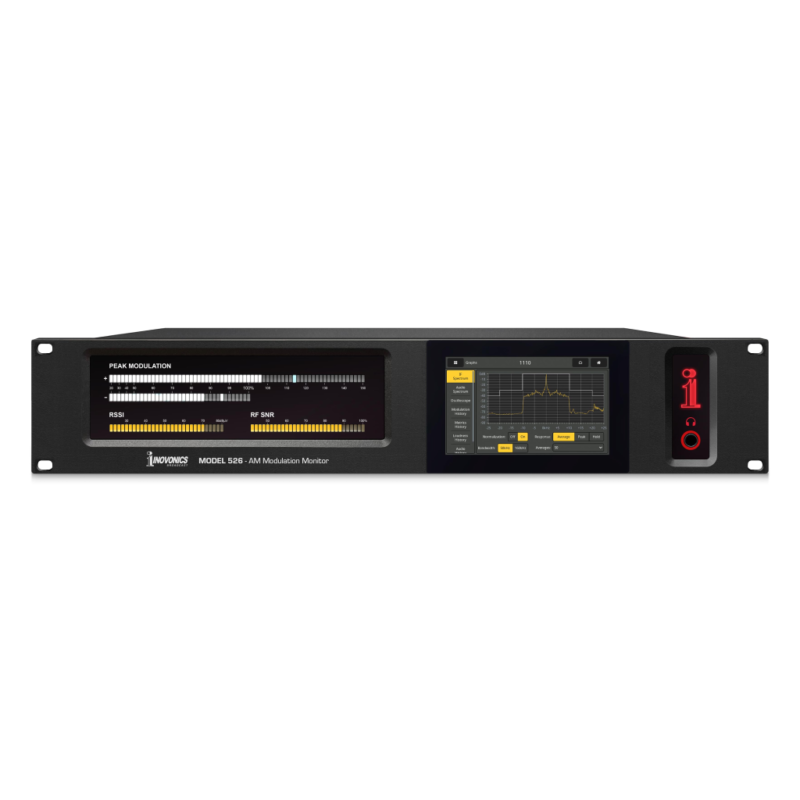

  • AM Modulation Monitor

    Features Remotely tune AM band, read metering, peak flashers. Tuning Range: 520kHz to 1720kHz in 10kHz steps; 522kHz to 1719kHz in 9kHz steps. Graphic 5-inch touch-screen and remote display of all level metering. Station Rotation for `round robin´ monitoring of up to 30 preset stations. Remote control and monitoring via Web. Enhanced alarm logging with notifications via Email/SMS & SNMP. Remote listening with multi-user stream and Dante/AES67 AoIP. Specifications PLEASE NOTE: Specifications tabulated here are actual, real-world measurements, not optimistic allusions to theoretical ideals. Measurement results should be repeatable when using the appropriate, laboratory-grade test equipment. RF & RECEPTION: Tuning Range: Tunes: 530kHz-1710kHz in 100kHz steps or 531kHz-1701kHz in 9kHz steps. Antenna Input: 50Ω/75Ω (F), 1Vrms max. High-Level RF Input: Two selectable 50-ohm (BNC) inputs for day/night scheduling, 5Vrms max. Off-Air Sensitivity (for 50dB monaural SNR): For 50dB SNR, 5dBµV or better with 10kHz audio bandwidth and NRSC de-emphasis; 15dBµV or better with 15kHz bandwidth, no de-emphasis. Frequency Response: ±0.25dB, 20Hz-15kHz in full-bandwidth mode. Distortion (at 99% modulation): <0.01% THD+N; <0.02% IMD (SMPTE, 60Hz/7kHz, 4:1). De-emphasis: NRSC ‘truncated’ 75µs (defeatable). Audio Cutoff Filter: Nth-order low-pass in audio monitor outputs only, programmable between 15kHz and 2kHz in 1kHz steps. OUTPUTS AND PORTS: Program Audio Outputs: Monaural program audio is delivered to ‘Left’ and ‘Right’ outputs for convenience in audio monitoring. The 526 does not support AM-stereo broadcasting. NOTE: Levels noted apply to symmetrical, ±100% carrier modulation. Consider headroom allowances for +125% program peaks. Balanced Analog: (XLR) Outputs 1 and 2 (‘L/R’) are adjustable from –15dBu to +15dBu in 0.1dB steps; 200Ω resistive source. AES Digital: (XLR) Adjustable from –30dBFS to 0dBFS in 0.1dB steps; user-selected 44.1kHz or 48kHz sample rate; 110Ω transformer-coupled. Dante/AES67 Compatible AoIP Port: (RJ45) Output at 44.1kHz (Dante-only) or 44.1kHz/48kHz (Dante/AES67). The AoIP utility has independent IP, Audio Format and Transmit Flow settings; level adjustable from –30dBFS to 0dBFS in 0.1dB steps. UDP Stream: ADTS or ADTS in MPEG-TS transport. HTTP/Icecast ‘Casual’ Listening Stream: Web browser remote-listening stream employs HE-AACv2 encoding, 44.1kHz or 48kHz sample rate, bit-rates from 18kbps to 64kbps; accommodates up to 10 simultaneous listeners. HTTP/Icecast and raw UDP streams are available simultaneously. Program Audio Outputs (continued): Headphone Jack: (¼” TRS) Menu-adjustable listening level. LAN Port: (RJ45) LAN connection to local network or Internet provides remote monitoring, control, listening and full SNMP implementation; user-programmable network setup and streaming parameters. General Purpose I/Os (Plug-In Barrier Strip): Inputs: GPIs are ground-seeking logic inputs with internal pull-up to +5Vdc. Programmable to accept momentary or sustained ground to switch functions. Outputs: Individual open-collector NPN transistor closures to ground are associated with alarm alerts. Each is programmable for GPO assignment and logic polarity. Outputs sink 100mA, 40VDC max. DISPLAYS AND DISPLAY OPTIONS: Bargraph & Numerical Level Metering: Positive and Negative Carrier Modulation (+150%/ –100%) • Demodulated Monaural Audio (dB) • BS.1770 Loudness (LU) • RF SNR (%) Graphic Displays and History Plots: IF Spectrum • Audio Spectrum • IF/Demod Oscilloscope • Modulation History • RF Metrics History • Loudness History • Audio History • BandScanner. TIMEKEEPING, SCHEDULER AND ALARMS: Real-Time Clock: Auto-sets to Internet time; auto/manual DST setting; battery backup. **Day/Night Scheduler: ** Webpage setup utility with link to FCC Sunrise & Sunset Calculator for automatic switchover, or GPI closure to ground for D/N operation. **Local & Remote Alarms: ** Positive Overmod • Negative Overmod • Audio Loss • Low Signal (Day) • Low Signal (Night). NOTE: Alarms have multiple parameter settings. All alarms can send text or email notifications. Alarms are automatically logged daily, weekly and monthly. POWER, ENVIRONMENTAL, MISCELLANEOUS Power Requirements 88-264VAC, Single-Phase; 12W. Size and Weight 3½”H x 19”W x 9”D; 10 lbs. (shipping weight) Operating Environmental 32°F/0°C-122°F/50°C; 0%-95% non-condensing relative humidity; 10,000ft/3048m. Conformances CE: EN50081-1 / EN50082-1, 93/68/EEC RoHS: 2002/95/EC. Direct Buy:- https://www.inovonicsbroadcast.com/product/526

    Read moreDone

  • Cat-5E FTP LSZH 15M Black

    $25.31

    High Quality patch cable for AXUM and AXITE mixing consoles

    Add to cartDone

  • Cat-5E FTP LSZH 20M Black

    $33.75

    High Quality patch cable for AXUM and AXITE mixing consoles

    Add to cartDone

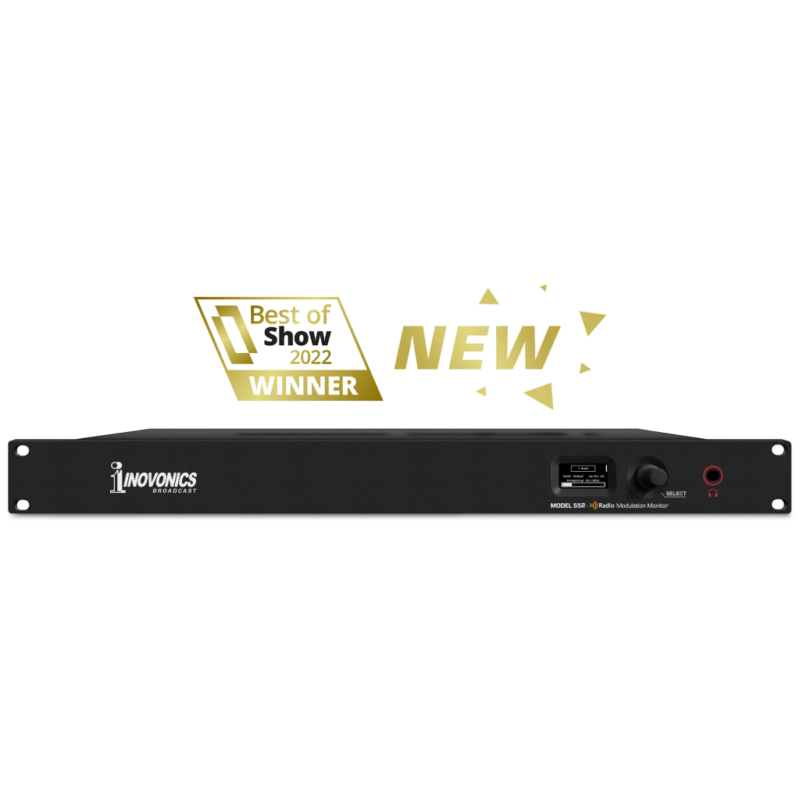

  • FM & HD Radio Modulation Monitor

    Features Monitor off-air analog FM and HD Radio signals (HD1-HD8) remotely via any Web enabled device. Spectrum graphs include RF Baseband, MPX and Left/Right Audio. O-Scope views for MPX, Pilot, RDS and all Audio Channels. The 552 collects a history of signal parameters and displays HD Radio™ album artwork, station logos and similar visuals via remote Web interface. Measures real-time audio diversity delay between the FM and HD1 broadcast. Fulltime off-air program audio is available simultaneously as L/R-analog, AES3-digital and Dante®-based AES67 AoIP streaming, all with adjustable levels, plus a multi-listener Internet IP stream and front-panel headphone jack. StationRotation enables the user to monitor up to 30 different Station Presets. Specifications Tuning Range 87.5MHz-107.9MHz in 100kHz steps Antenna Input: 75-ohm (F) High Level RF Input: 50-ohm (BNC) Sensitivity/SNR: 10dBuV required for 50dB mono-FM SNR, unweighted. Reception Modes: FM: Stereo / Forced Mono HD Radio: HD1 through HD8 FM/HD1: ‘Split Mode’ delivers L+R FM to the left audio channel and L+R HD1 to the right. Off-Air Frequency Response: FM: ±.1dB, 20Hz-15kHz HD Radio: ±0.25dB, 20Hz-20kHz Stereo Separation: FM: 60dB, 20Hz-15kHz HD Radio: 90dB, 20Hz-20kHz Distortion: FM: <0.01% THD, 20Hz-15kHz HD Radio: <0.003% THD, 20Hz-20kHz FM De-emphasis: 75µs, 50µs or None, menu-selectable Program Audio Outputs: ‘Assignable’ outputs utilizing XLR connectors. Balanced Analog: Left and Right outputs adjustable from –15dBu to +15dBu in 0.1dB steps; 200Ω source. AES Digital: Adjustable from –30dBFS to 0dBFS in 0.1dB steps; 44.1kHz sample rate; 110 Ω transformer-coupled. Dante/AES67 Compatible: (RJ45) Output at 44.1kHz (Dante-only) or 44.1kHz/ 48kHz (Dante /AES67); AoIP utility has independent IP, Audio Format and Transmit Flow settings; level adjustable from –30dBFS to 0dBFS in 0.1dB steps. Headphone Jack: (¼” TRS) with adjustable listening level. Listening Stream: Web browser ‘remote listening’ stream uses HE-AACv2 encoding, 44.1kHz or 48kHz sample rate, bit-rates from 18kbps to 64kbps; accommodates up to 10 simultaneous listeners. HTTP/Icecast and raw UDP streams are available simultaneously. Composite/MPX Output: (BNC) may be switched between MPX and 19kHz stereo pilot sample; adjustable from 1Vpp to 6Vpp in 0.05V steps. LAN Port: LAN connection to local network or Internet provides remote monitoring, control, listening and full SNMP implementation; user-programmable network setup and streaming parameters. General Purpose Outputs: Ten individual open-collector NPN transistor closures to ground are associated with alarm functions. Each is programmable for GPO assignment and logic polarity. RDS Fields Displayed ## (Web only): PS • PI • Call • RT • RT+1 • RT+2 • PTY • PTYN • CT • M/S • DI • TP • TA • AF • ODA • Block Error Rate • Groups & use statistics. HD PAD Data Displayed ## (Web only): Overview: Short Name • Universal Name • Station ID • Slogan• Message • Station Location • Service Mode • TX Blend • Emergency Alert HD1-HD8, each: Slogan • Program Type • Artist • Title • Album • Codec Mode • Bitrate • TX Gain • Logo/Artist Experience graphics and file details. Bargraph & Numerical Level Metering: Analog FM: Carrier Modulation • Stereo Pilot & Subcarriers • Demodulated L/R & L+R/L-R • Stereo Separation • Stereo Crosstalk • BS.1770 Loudness • Synchronous & AM Noise. HD Radio: (simultaneously for HD1 and three other preselected HD programs) L/R Audio • BS.1770 Loudness (absolute and relative to Analog FM Loudness). FM/HD1 Alignment: Timing offset and level and phase discrepancies between programs; ‘Confidence Factor’ display. Graphic Displays/Plots ## (Web only): RF Spectrum • MPX Spectrum • Audio Spec­trum • Audio XY • Audio O’scope • FM Modulation History • Audio Level History • Metrics History • FM/HD1 Time & Level Alignment History • BandScanner™ utility. Alarms: Most alarms have multiple parameter settings. All alarms can send text or email notifications. Alarms are also logged: daily, weekly, monthly._ Analog FM: Carrier Overmod • Audio Loss • Low Signal • RDS Loss • PI Error • RT Update • Pilot Loss HD Radio: HD Loss • Program Loss • Audio Loss • HD Power Level • FM/HD1 Alignment • PSD Update • Logo Receipt • Artist Experience Update • Image Issues • Emergency Alert Updates Real-Time Clock: Auto-sets to Internet time; auto/manual DST setting; battery backup. Power Requirement: 88-264Vac, 18W. Operating Environment: 32°F/0°C-122°F/50°C; 0%-95% non-condensing relative humidity; 10,000ft/3048m Size and Weight: 25”H x 17”W x 3”D; 8 lbs. shipping weight. Direct Buy:- https://www.inovonicsbroadcast.com/product/552

    Read moreDone

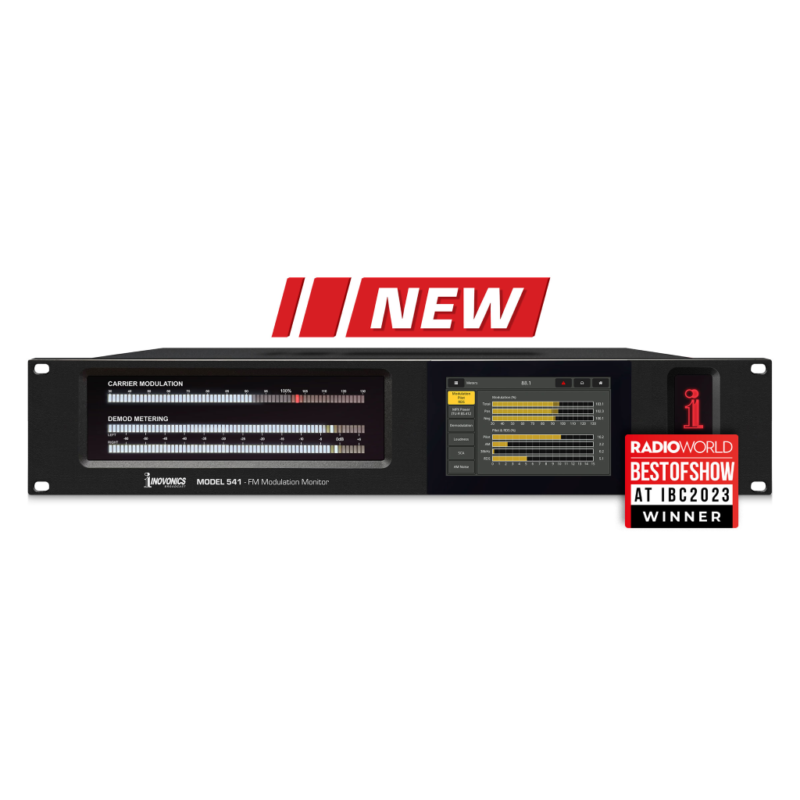

  • FM Modulation Monitor

    Features Unexcelled off-air reception of analog-FM broadcasts with highly-accurate displays of total modulation and other measurements, even in the presence of on-channel or adjacent-channel HD Radio carriers at any level. Intuitive, menu-driven setup from the front panel, or remote setup and operation with the built-in Webserver that may be addressed over any IP network by computer or mobile device. The 541 supports full SNMP remote control and monitoring. Graphic front-panel and remote display of all level metering; FFT spectrum analysis of IF passband, MPX baseband and program audio; oscilloscope display of program audio and stereo XY. Alarms for a range of signal faults, with tallies and SMS/text or email message dispatches to specific individuals for various alarm conditions. All alarms are logged chronologically as well. Analog, AES3-digital, HTTP/UDP Web-streaming and independent AoIP-streaming program audio outputs, plus an FM composite/MPX baseband output. The BandScanner™ utility scans the FM spectrum and displays each station with its signal level, PI code and call sign. StationRotation™ mode enables automatic sequential monitoring of multiple station presets. Collects and logs a history-over-time of FM and audio signal parameters. Accurate program loudness measurement to the human perception ITU-R BS.1770 (‘LU’) loudness specification. Stays on-channel and retains measurement setups through signal and power losses. Specifications PLEASE NOTE: Specifications tabulated here are actual, real-world measurements, not optimistic allusions to theoretical ideals. Measurement results should be repeatable when using the appropriate, laboratory-grade test equipment. RF & RECEPTION: Tuning Range: Tunes 76.0MHz-108.0MHz in 100kHz steps. Antenna Input: 75-ohm (F), 1VRMS max. High-Level RF Input: 50-ohm (BNC), 5VRMS max. Off-Air Sensitivity (for 50dB monaural SNR): 5dBµV or better with de-emphasis. 15dBµV or better unweighted. Reception Modes: Stereo / Forced Mono / SCA Program Audio FM BASEBAND (Off-Air or High Level; (D) indicates measurements taken with de-emphasis.) Frequency Response: ±0.25dB, 10Hz-100kHz. Signal-to-Noise (D): >83dB. Distortion (D): <0.01% THD+N; <0.01% IMD (SMPTE, 60Hz/7kHz, 4:1). FM Deviation: Indicates composite (total) and independent positive and negative deviations. ±75kHz = 100% Modulation; 0-200% metering with ±1% accuracy. *AM Noise (D): Measures down to 87dB below 100% AM Modulation. FM Stereo Pilot: Indicates 0-15% pilot injection; pilot frequency readout has ±0.1Hz accuracy. FM Subcarriers: Indicates percent injection of 38kHz (residual), 57kHz RDS, 67kHz/92kHz SCA subcarriers. FM AUDIO PERFORMANCE (Off-Air or High Level; taken with de-emphasis; (M) indicates measurements taken in monaural reception mode.) Frequency Response: ±0.1dB, 20Hz-15kHz. Signal-to-Noise (M): Analog Out: <0.01% THD+N; <0.02% IMD (SMPTE, 60Hz/7kHz, 4:1). Digital Out: <0.01% THD+N; <0.01% IMD (SMPTE, 60Hz/7kHz, 4:1). Stereo Separation: >64dB, 20Hz-15kHz FM Stereo Crosstalk (Main-Sub or Sub-Main): >67dB, 20Hz-15kHz,. FM De-emphasis: 75µs / 50µs / None. INPUTS, OUTPUTS AND PORTS: MPX Output: (BNC) select either MPX or 19kHz stereo pilot sample; adjustable from 1VPP to 6VPP in 0.01V steps; ±0.25dB, 10Hz-100kHz. Program Audio Outputs: May be assigned to the FM-stereo program or to SCA audio. Unless otherwise noted, performance parameters reflect FM Stereo Performance cited above. Balanced Analog: (XLR) Left and Right outputs adjustable from –15dBu to +15dBu in 0.1dB steps; 200Ω resistive source. AES Digital: (XLR) Adjustable from –30dBFS to 0dBFS in 0.1dB steps; user-selected 44.1kHz or 48kHz sample rate; 110Ω transformer-coupled. Dante/AES67 Compatible AoIP Port: (RJ45) Output at 44.1kHz (Dante-only) or 44.1kHz/48kHz (Dante/AES67); AoIP utility has independent IP, Audio Format and Transmit Flow settings; level adjustable from –30dBFS to 0dBFS in 0.1dB steps. Program Audio Outputs (continued): UDP Stream: ADTS or ADTS in MPEG-TS transport. HTTP/Icecast ‘Casual’ Listening Stream: Web browser remote-listening stream employs HE-AACv2 encoding, 44.1kHz or 48kHz sample rate, bit-rates from 18kbps to 64kbps; accommodates up to 10 simultaneous listeners. HTTP/Icecast and raw UDP streams are available simultaneously. Headphone Jack: (¼” TRS) Menu-adjustable listening level. LAN Port: (RJ45) LAN connection to local network or Internet provides remote monitoring, control, listening and full SNMP implementation; user-programmable network setup and streaming parameters. LAN Port: (RJ45) LAN connection to local network or Internet provides remote monitoring, control, listening and full SNMP implementation; user-programmable network setup and streaming parameters. DISPLAYS AND DISPLAY OPTIONS: Bargraph & Numerical Level Metering: Carrier Modulation • Stereo Pilot & Subcarriers. MPX Power • Demodulated L/R & L+R/L-R Stereo Separation • Stereo Crosstalk • BS.1770 Loudness • SCA Levels • Synchronous & AM Noise. Graphic Displays and History Plots: IF Spectrum • MPX Spectrum • Audio Spectrum • Audio Oscilloscope • Audio XY • FM Modulation History. Audio Level History • RF Metrics History. BandScanner™ utility. RDS Fields Displayed: PS • PI • Call • RT • RT+1 • RT+2 • PTY • PTYN • CT • M/S • DI • TP • TA • AF • ODA • Block Error Rate • Groups & Group Use Statistics. TIMEKEEPING AND ALARMS: Real-Time Clock: Auto-sets to Internet time; auto/manual DST setting; battery backup. Local & Remote Alarms: Carrier Overmod • MPX Power • Audio Loss • Low Signal • Pilot Loss • Multipath • RDS Loss • RDS PI Error • RDS RT RDS CT • RDS TMC • Pilot Loss • MPX Power. (Most alarms have multiple parameter settings. All alarms can send text or email notifications. Alarms are automatically logged daily, weekly and monthly.) POWER, ENVIRONMENTAL, MISCELLANEOUS Power Requirements 88-264VAC, Single-Phase; 12W. Size and Weight 3.5”H x 19”W x 9”D (2U); 10 lbs. (shipping weight) Operating Environmental 32°F/0°C-122°F/50°C; 0%-95% non-condensing relative humidity; 10,000ft/3048m. Conformances CE: EN50081-1 / EN50082-1, 93/68/EEC RoHS: 2002/95/EC. Direct Buy:- https://www.inovonicsbroadcast.com/product/541

    Read moreDone

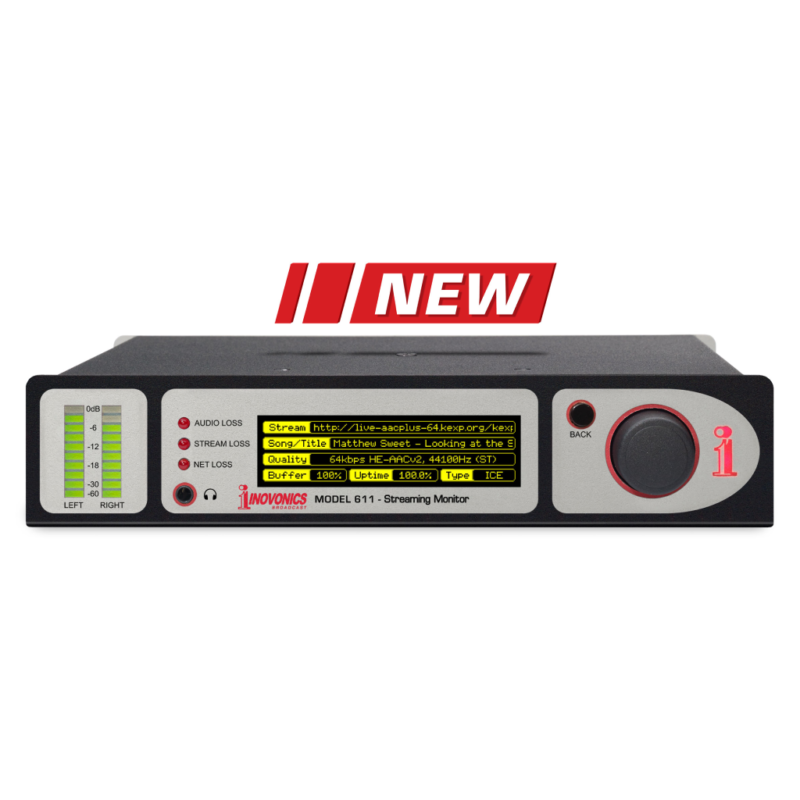

  • Network Streaming Monitor

    Features Support for HTTP and HTTPS streams. Stream formats: Icecast/Shoutcast, HLS (Raw, MPEG-TS, fMP4). Stream Rotation – the 611 will rotate through preset streams sequentially monitoring one stream at a time. Failover Support: Preset back-up streams with customizable failover triggers. Easy front-panel setup uses jog-wheel menu navigation and the front-panel readout. The corresponding Web interface offers a detailed presentation and additional options. Adjustable output levels for Analog L/R and AES-digital Alarms & notifications via email or SMS for audio loss, stream loss, internet loss, and high ping time. Specifications Network Connection LAN (RJ-45) jack accepts universal TCP/IP connection to Local Area Network, and via router to the Internet. Supports HTTP and HTTPS connections. Audio Formats Supported MP3 to 320kbps; Ogg Vorbis to 320kbps; AAC-LC to 320kbps; HE-AAC-v1 to 128 kbps; HE-AACv2 to 64kbps. Streaming Formats Supported Icecast/Shoutcast; HLS; Raw (MPEG-TS and fMP4). Metadata Decoded and Displayed Stream Type; Stream Name; Stream Owner; Song/Title; Format; Container; URL; Connected URL; Buffer; Uptime; Codec; Bitrate; Sample Rate; Status. Metering and History Webpage interface bargraph readout of Left, Right, L+R and L–R levels; up to 24-hour graphic rolling history of L/R audio levels, buffer utilization and pinging exceptions. Program Audio Output(s) Adjustable balanced analog Left/Right (XLR), 200-ohm source impedance; adjustable AES3 digital (XLR), 48kHz sampling rate. HTTP/Icecast Listening Stream Output Web browser remote-listening stream employs HE-AACv2 encoding and accommodates up to 10 simultaneous listeners. Headphone Jack Front-panel headphone jack (3.5mm TRS) with adjustable level. Alarms Parameter-adjustable alarms for Audio Loss, Stream Loss, Metadata Not Updated, Underrun, High Ping and Internet Loss alarm functions. GPO Alarm Tally Outputs Six individual open-collector NPN transistor outputs for alarm conditions. Outputs each sink 100mA, 40Vdc max., software-assignable for GPO terminal and polarity. SNMP Compatibility Setup and operation read/write parameters under SNMP management; downloadable MIB file. Power Requirement 12VDC, 230mA (2.1mm x 5.5mm coaxial). A universal ‘brick’-type switching power supply that accepts 100-240Vac, 50/60Hz mains is provided. Mounting Options An optional rack adapter mounts one or two 611s in a standard 19-inch 1U rack space. A blanking panel and daisy-chain power pigtail are included. Environmental Continuous operation at ambient temperatures between 32ºF/0ºC and 122ºF/50ºC; 0-95% relative humidity, non-condensing, altitudes to 10,000ft/3,048m. Size and Weight 1.6”H x 8”W x 6”D; 5 lbs. shipping weight.

    Read moreDone

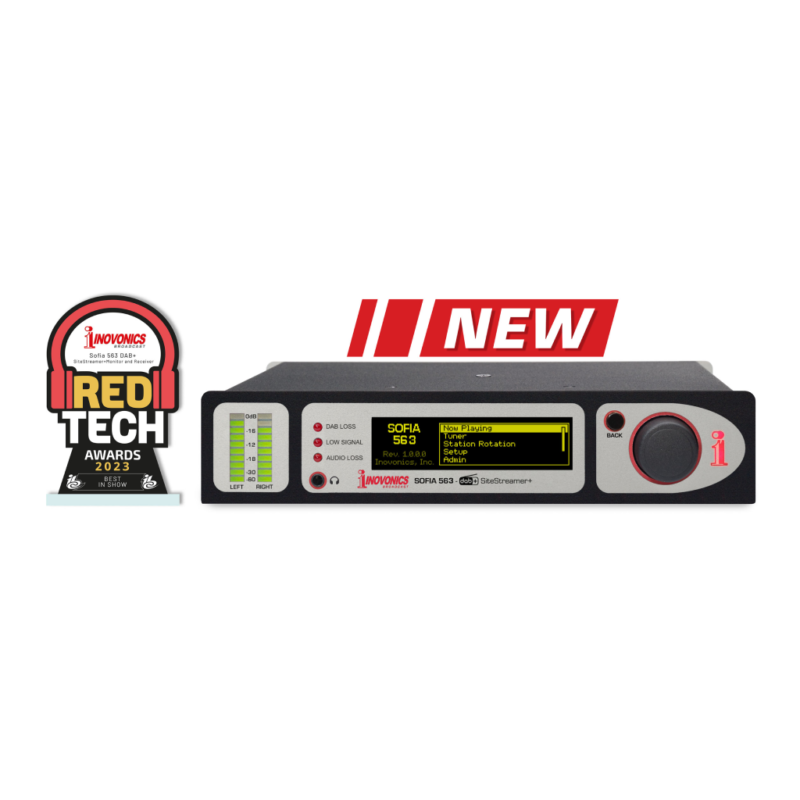

  • SOFIA 563 DAB+ SiteStreamer

    Features Remotely Monitor fulltime off-air DAB/DAB+ signals. Displays graphics and related text data on Web interface. Adjustable off-air output levels for LR Analog, AES3-digital and Dante/AES67 AoIP. Internet-listening stream up to 10 listeners at once. Monitor multiple transmissions sequentially with StationRotation. Alarms & notifications sent via email or SMS messaging. Enhanced alarm logging with no limit to the number of alarms that can be logged. Easy set-up and operation. Full SNMP support. Direct Buy:- https://www.inovonicsbroadcast.com/product/563

    Read moreDone

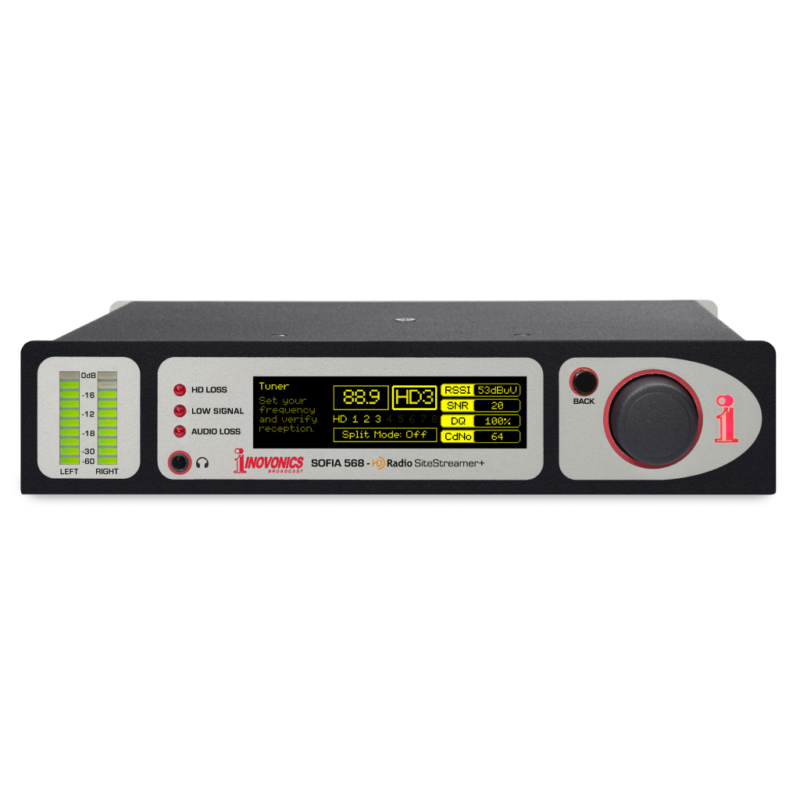

  • SOFIA HD Radio™ SiteStreamer

    The SOFIA 568 provides analog, AES3-digital and AoIP-streaming audio outputs. It collects histograms of signal parameters and displays HD Radio™ album artwork, station logos and similar visuals via the Web interface. Multiple stations can be sequentially monitored using the programmable StationRotation™ feature. The SOFIA 568 includes a built-in BandScanner™, a real-time clock and full SNMP functionality. The elite SiteStreamer+™ (‘Plus’) series offers advanced features for the most critical monitoring situations. SiteStreamers™ also deliver important RF and audio signal measurements and dispatch email or text-message alarms for out-of-limits conditions and other reception errors. Features Install the SiteStreamer within the reception contour of your station and monitor off-air analog FM or HD Radio signals (HD1-HD8) via the Web from anywhere in the world. The built-in BandScanner displays a spectrum plot of the entire FM band (or a user-selected portion) and identifies HD Radio transmissions. Gives local and remote readout of all pertinent FM/RDS and HD/PAD data. Easy front-panel setup uses jog-wheel menu navigation and the front-panel readout. The corresponding Web interface offers a detailed presentation and additional options. Stays on-channel and on-mode through signal and power loss; does not auto-blend between FM and HD like a consumer radio. Front-panel alarms and/or rear-panel ‘tallies’ indicate Audio Loss, Low Signal, RDS Errors and HD Reception Loss. ‘Split Mode’ audio monitoring aids transmission diversity delay setup. When issued, free firmware updates are easily installed in the field or remotely through the Web interface. The half-rack package features an OLED hi-res graphic display, wide-range LED level meters and individual alarm LEDs with rear-panel tallies. Real-Time Clock has battery backup. SNMP utility is fully supported. GPOs may be user-assigned to specific alarm functions. Fulltime off-air program audio is available simultaneously as L/R-analog, AES3-digital and Dante®-based AES67 AoIP streaming, all with adjustable levels, plus a multi-listener Internet IP stream and front-panel headphone jack. The SOFIA 568 Internet-listening stream supports up to 10 listeners at once. Enhanced alarm logging includes the duration of each alarm, and there is virtually no limit to the number of alarms that can be logged. Download a complete log randomly, or automatically daily, weekly or monthly. Specifications Tuning Range 87.5MHz to 107.9MHz in 100kHz steps. Antenna Input 75Ω (BNC). Sensitivity/SNR 10dBµV required for 50dB mono-FM S/N. Audio Response FM: ±1dB, 30Hz – 15kHz; de-emphasis is programmable at 75µs or 50µs or OFF. HD Radio™: ±0.25dB, 20Hz – 20kHz. Reception Modes FM: Stereo / Stereo Auto-Blend / Forced-Mono. HD Radio™: HD1 through HD8; ‘Split Mode’ delivers L+R FM to the left audio channel and L+R HD1 to the right. RDS Fields Displayed PS, PI (and call), RT, RT+1, RT+2, PTY, PTYN, C/T, M/S, DI, TP, TA; RDS Block Error Rate, Groups Transmitted (with use statistics), AF, ODA. HD PAD Data Displayed SIS: Short Name, Universal Name, Station ID, Slogan, Message, Station Location. Misc: Service Mode, Codec Mode, TX Gain, TX Blend Control. PSD (HD1-HD8, each): Slogan, PTY, Artist, Title, Album; Logo and/or Artist Experience graphics. Graphs and Metering L, R, L+R and L–R Program Audio; Audio Histogram; RSSI, RF SNR, HD Level and Cd/No levels and histograms. Program Audio Outputs: Balanced Analog (XLR) Left and Right outputs are adjustable from –15dBu to +15dBu in 0.1dB steps. AES Digital (XLR) output at 44.1kHz or 48kHz is adjustable from –30dBFS to 0dBFS in 0.1dB steps. Headphone Jack (3.5mm TRS) has adjustable listening level. Streaming Audio MP3 or OGG (selectable) streams have bitrates from 32kbps to 256kbps and sampling rates from 16kHz to 48kHz. Alarms Audio Loss: Alarm responds to the monitored service (FM or HD Radio). Alarm On/Off thresholds and Time On/Off intervals are programmable. Low Signal: Alarm and reset trigger levels are independently adjustable relative to the FM carrier level display and have programmable Time On/Off timings. RDS Alarm: Programmable Time On/Off for RDS Loss or PI Error. Pilot Loss: Programmable Time On/Off for loss of Stereo Pilot. HD Loss: Fixed metrics determine loss of HD Radio reception; programmable Time On/Off. Email Alerts: Email or SMS/text-messaging can alert selected personnel to specific alarms. Alarm ‘Tallies’: Individual open-collector NPN transistor outputs to ground are programmable for logic polarity and GPO assignment. Real-Time Clock Auto-sets to Internet time; auto/manual DST setting, battery backup. AoIP Port Dante®-based, AES67-compatible (selectable) AoIP utility has independent IP, Audio Format and Transmit Flow settings. LAN Port LAN connection to local network or Internet provides remote monitoring (listening and SOFIA 568 control); user-program­mable network setup and streaming parameters. Power Requirement 12VDC at 450mA; a universal 90-240VAC inline switching power supply is included with the SOFIA 568 SiteStreamer. Mounting Options An optional rack adapter mounts one or two half-rack modules in a 1U, 19-inch rack space. Size and Weight 1.6”H x 8”W x 6”D; 5 lbs. shipping weight. Environmental Continuous operation at ambient temperatures between 32ºF/0ºC and 122ºF/50ºC; 0-95% relative humidity, non-condensing, altitudes to 10,000ft/3,048m.

    Read moreDone
