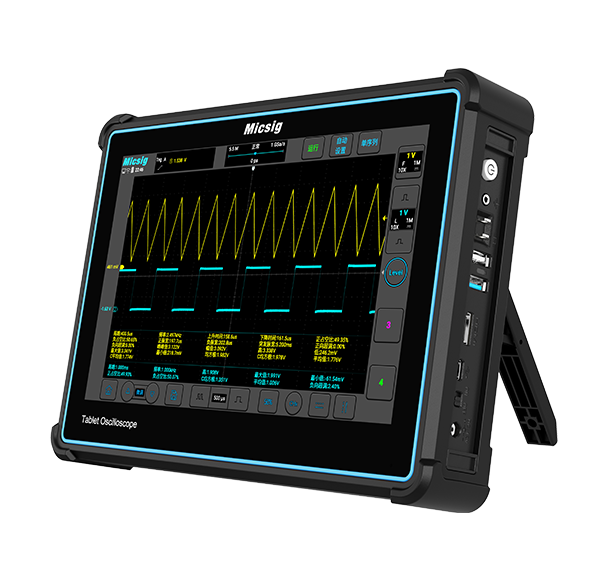

GEN 4 Tablet Oscilloscope – TO Series

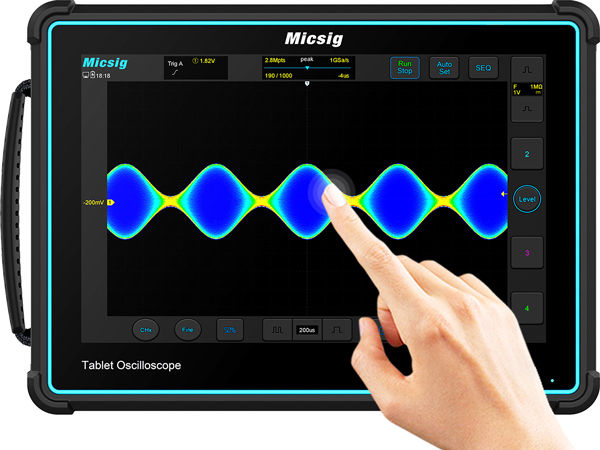

Full Touch Operation

The new TO series oscilloscope provides full touch operation, with upgraded UI, it’s much more efficient to use than traditional desktop oscilloscopes

10.1 Inch TFT-LCD Display

Ultra-high 1280*800 resolution plus seamless capacitive screen provides unmatched touch experience, compact design leading in portable solution

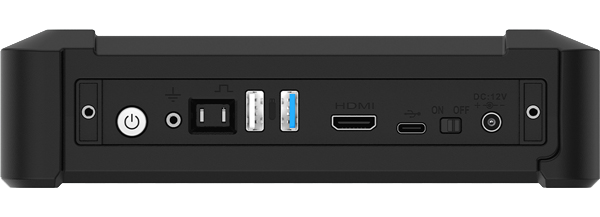

Complete Connectivity

Equipped with Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, and Trigger Out interfaces

Portable & Benchtop

Built-in 7500mAh Li-ion battery support 4/5h long field work, Power-off lock secure safety to carry and store; Triangle back stand make sure it sits on the bench solidly as well.

Deep 220Mpts Memory Depth

Using hardware-based Zoom technology and max 220Mpts memory depth, users can capture signals at longer time periods at higher resollution, and to see more details

Max300,000 wfms/s waveform capture rate, the TO series can easily capture unusual or low-probability events.

Powerful Trigger Functions

Support Edge, Pulse, Runt, Logic, N-edge, Video, Timeout, Slope etc.

Serial Bus Decoding Function (Standard)

Support UART、CAN、LIN、SPI、I2C, also able to output the decoded data in Text mode or to CSV format



Key Specifications

Model	TO3004	TO2004	TO2002	TO1004
Bandwidth	300MHz	200MHz	200MHz	100MHz
Rise Time	≤1.16ns	≤1.75ns	≤1.75ns	≤3.5ns
Analog channels	4	4	2	4
Real-time sampling rate	2GSa/s	2GSa/s	1GSa/s	1GSa/s
Memory Depth	220Mpts	220Mpts	110Mpts	110Mpts
Max. waveform capture rate	300,000 wfms/s	300,000 wfms/s	78,000 wfms/s	78,000 wfms/s
Input sensitivity range	1mV/div ~ 10V/div (1MΩ)；1mV/div ~ 1V/div (50Ω)		1mV/div ~ 10V/div
Bandwidth Filter	20MHz, High Pass / Low Pass (to 30Hz)		20MHz, High Pass / Low Pass (to 30kHz)
Segmented Storage	Support，capture max 10,000 waveform events		Not Support
Input impedance	1MΩ/50Ω		1MΩ
Timebase range	1ns/div ~ 1ks/div		2ns/div ~ 1ks/div
Vertical Resolution	8bit
Trigger types	Edge, Pulse Width, Logic, Nth Edge, Runt, Slope, Time Out, Video
Bus decoding	RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C
Interfaces	Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out
Storage	32G
Display	10.1 Inch LCD capacitive touch display，1280*800 resolution，11*10 grids
Battery	7.4V, 7500mAh Li-Ion battery
Dimension / Net Weight	265*192*50mm / 1.9kg（with battery）
