Network Streaming Monitor
Description
Features
- Support for HTTP and HTTPS streams.
- Stream formats: Icecast/Shoutcast, HLS (Raw, MPEG-TS, fMP4).
- Stream Rotation – the 611 will rotate through preset streams sequentially monitoring one stream at a time.
- Failover Support: Preset back-up streams with customizable failover triggers.

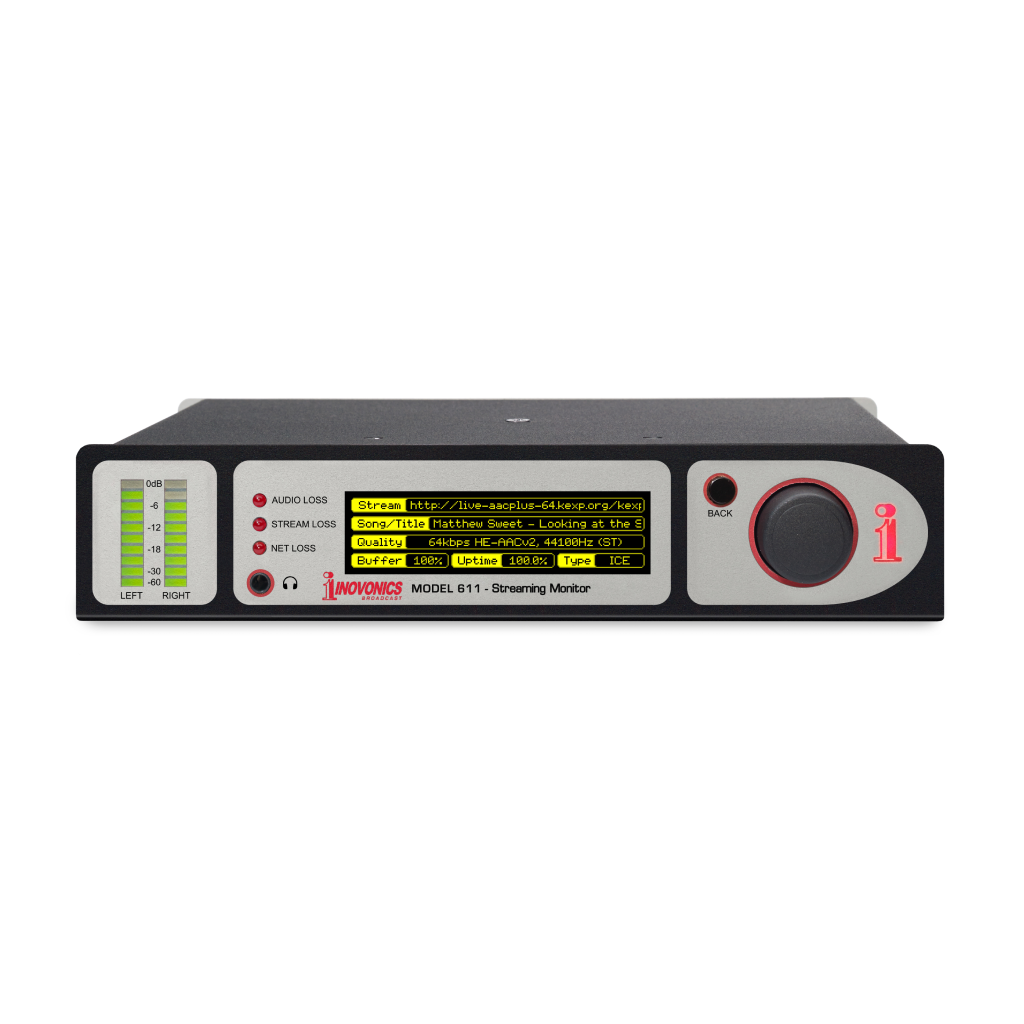

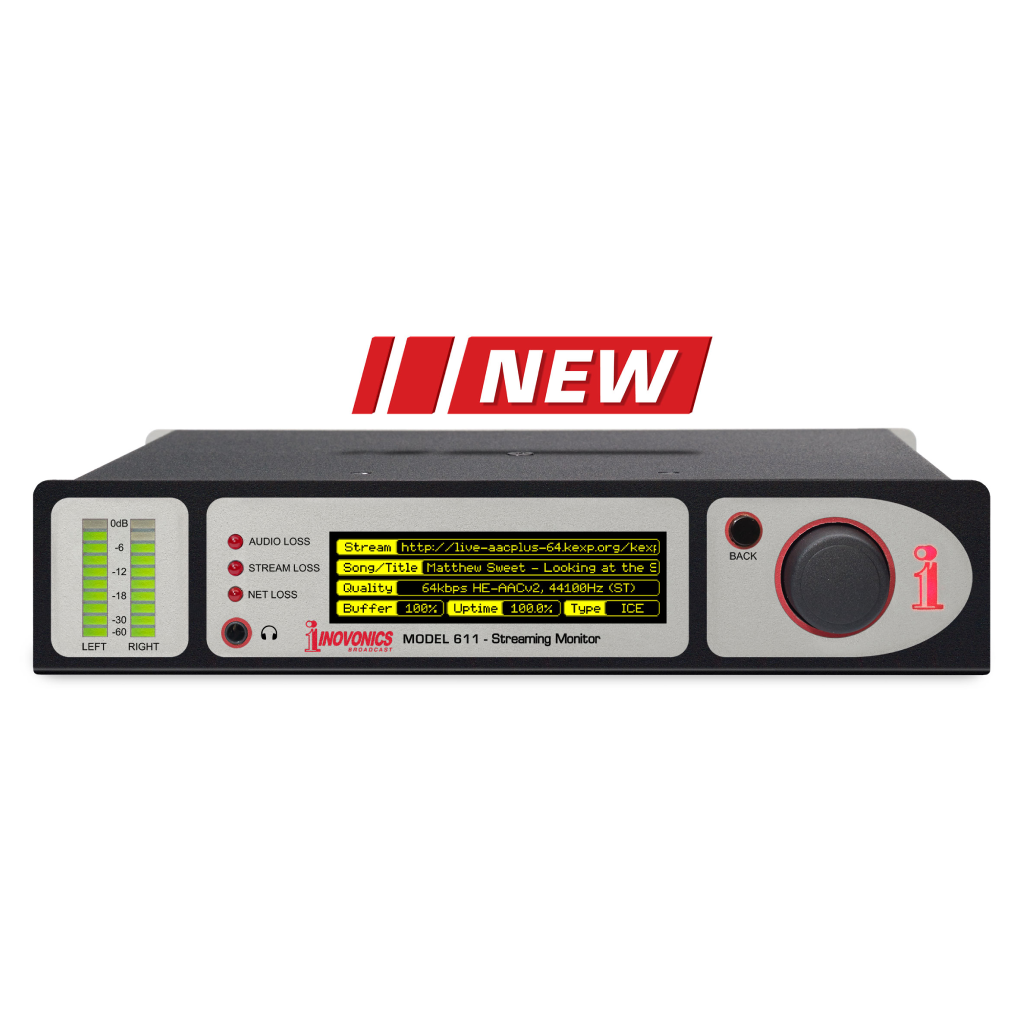

- Easy front-panel setup uses jog-wheel menu navigation and the front-panel readout. The corresponding Web interface offers a detailed presentation and additional options.
- Adjustable output levels for Analog L/R and AES-digital
- Alarms & notifications via email or SMS for audio loss, stream loss, internet loss, and high ping time.
Specifications
Network Connection
LAN (RJ-45) jack accepts universal TCP/IP connection to Local Area Network, and via router to the Internet. Supports HTTP and HTTPS connections.
Audio Formats Supported
MP3 to 320kbps; Ogg Vorbis to 320kbps; AAC-LC to 320kbps; HE-AAC-v1 to 128 kbps; HE-AACv2 to 64kbps.
Streaming Formats Supported
Icecast/Shoutcast; HLS; Raw (MPEG-TS and fMP4).
Metadata Decoded and Displayed
Stream Type; Stream Name; Stream Owner; Song/Title; Format; Container; URL; Connected URL; Buffer; Uptime; Codec; Bitrate; Sample Rate; Status.
Metering and History
Webpage interface bargraph readout of Left, Right, L+R and L–R levels; up to 24-hour graphic rolling history of L/R audio levels, buffer utilization and pinging exceptions.
Program Audio Output(s)
Adjustable balanced analog Left/Right (XLR), 200-ohm source impedance; adjustable AES3 digital (XLR), 48kHz sampling rate.
HTTP/Icecast Listening Stream Output
Web browser remote-listening stream employs HE-AACv2 encoding and accommodates up to 10 simultaneous listeners.
Headphone Jack
Front-panel headphone jack (3.5mm TRS) with adjustable level.
Alarms
Parameter-adjustable alarms for Audio Loss, Stream Loss, Metadata Not Updated, Underrun, High Ping and Internet Loss alarm functions.
GPO Alarm Tally Outputs
Six individual open-collector NPN transistor outputs for alarm conditions. Outputs each sink 100mA, 40Vdc max., software-assignable for GPO terminal and polarity.
SNMP Compatibility
Setup and operation read/write parameters under SNMP management; downloadable MIB file.
Power Requirement
12VDC, 230mA (2.1mm x 5.5mm coaxial). A universal ‘brick’-type switching power supply that accepts 100-240Vac, 50/60Hz mains is provided.
Mounting Options
An optional rack adapter mounts one or two 611s in a standard 19-inch 1U rack space. A blanking panel and daisy-chain power pigtail are included.
Environmental
Continuous operation at ambient temperatures between 32ºF/0ºC and 122ºF/50ºC; 0-95% relative humidity, non-condensing, altitudes to 10,000ft/3,048m.
Size and Weight
1.6”H x 8”W x 6”D; 5 lbs. shipping weight.
